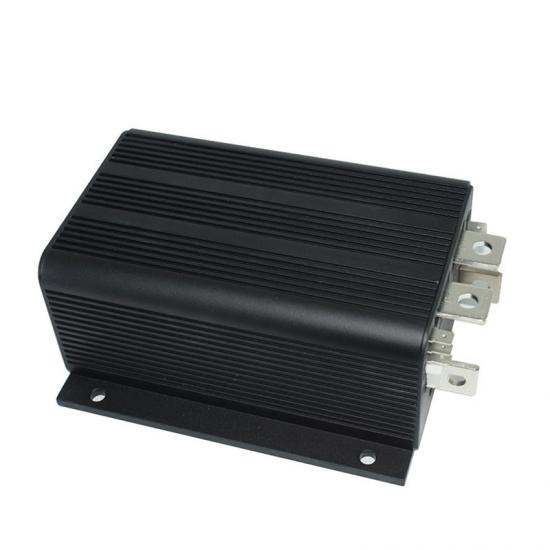

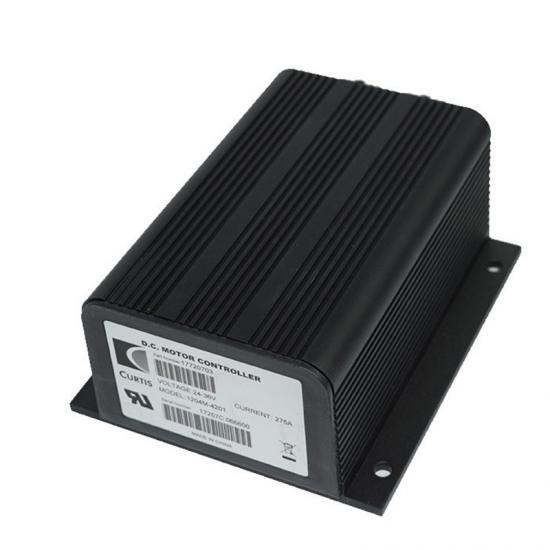

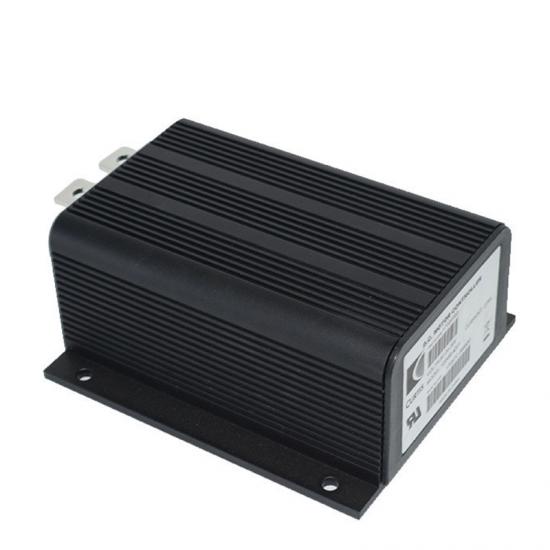

1204M-4201 Curtis 24V 36V 275A DC Series Excited Motor Controller
Product Description
Voltage Compatibility: Supports 24V/36V dual voltage specifications, allowing flexible switching based on the equipment's power system requirements. This eliminates the need for additional controller replacement and compatibility with a wide range of small and medium-sized DC series-wound motors, reducing equipment selection and replacement costs.
Rated Output Current: 275A continuous output. Peak current can meet short-term high-load conditions (subject to motor parameter matching). This provides stable operation for high-power motors, ensuring sufficient power for equipment under heavy loads and on slopes.
Motor Compatibility: Designed specifically for DC series-wound motors, it precisely matches their mechanical characteristics. An optimized current control algorithm reduces motor startup shock and extends motor life.
Product Specifications
| Product Name | DC CONTROLLER |
| Model Number | 1204M-4201 |
| Voltage | 24V/36V |
| Code | A.B.01.02.0427A1 |
|
Application |
forklifts |
|
proposed motor power rate |
2.3 - 3.6 kW |
|
Norminal Battery Voltage (Volts) |
36V (default setting) or 24V |
|
2 Minute Current Rating (amps) |
275 |
|
5 Minute Current Rating (amps) |
200 |
|
1 Hour Current Rating (amps) |
125 |
|
Plug Braking (A2 Busbar) |
Yes |

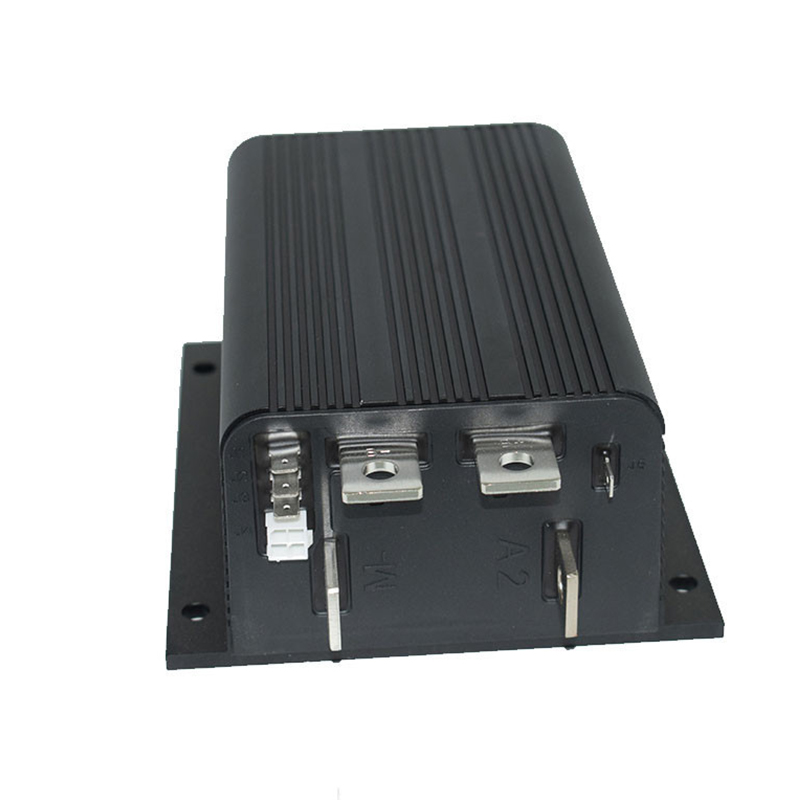

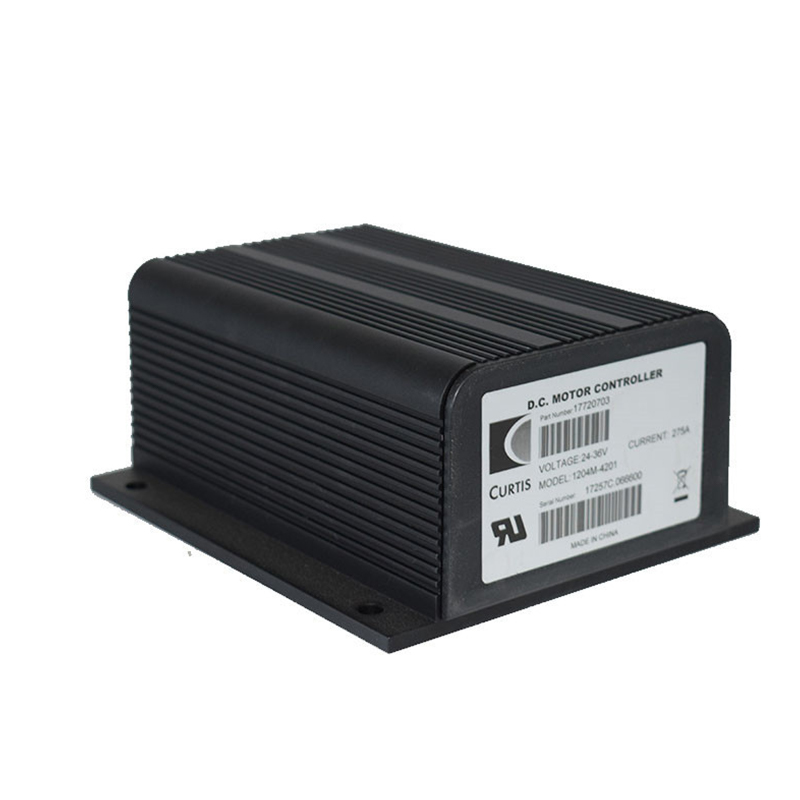

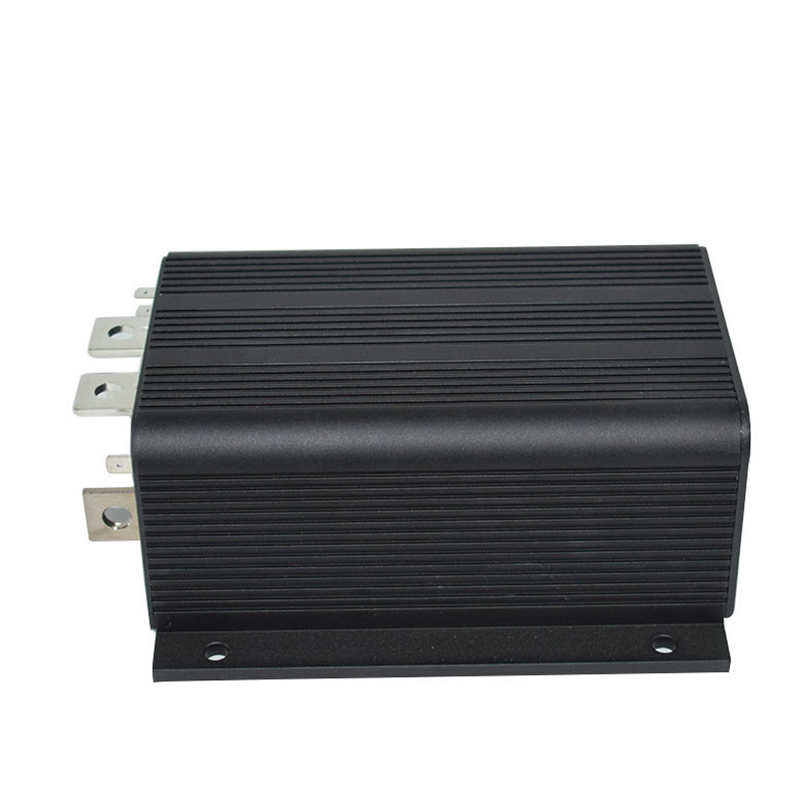

Detail Photos
Rugged and Durable: Designed and manufactured to industrial standards, it withstands harsh operating environments such as vibration, moisture, and dust.
Comprehensive Protection System: Multiple intelligent protection features are built in, including:
Overheat Protection: Automatically monitors controller temperature and reduces power or shuts down if overheating occurs, preventing damage.
Overcurrent Protection: Real-time current monitoring prevents damage to the controller and motor due to short circuits or overloads.
Undervoltage Protection: Automatically intervenes when battery voltage is too low, preventing over-discharge and extending battery life.
 |
 |
The Curtis 1204M-4201 controller features wide voltage adaptability, high current output, multiple protections, and durability and reliability. It meets the power control needs of diverse equipment and adapts to complex industrial and outdoor conditions, making it an ideal choice for improving equipment performance and ensuring operational safety.
Packaging & Shipping
Packing Details : Foam Protection, Individually Bagged, Packed into boxes, Standard Packing: Boxes+ Carton+ Pallet Packing or According to customers' requirement
Delivery Details : 7-10 working days after down payment received
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Shanghai air port to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
